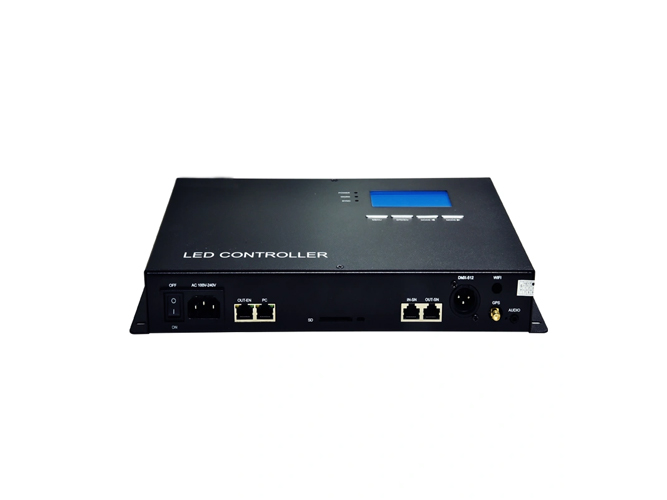

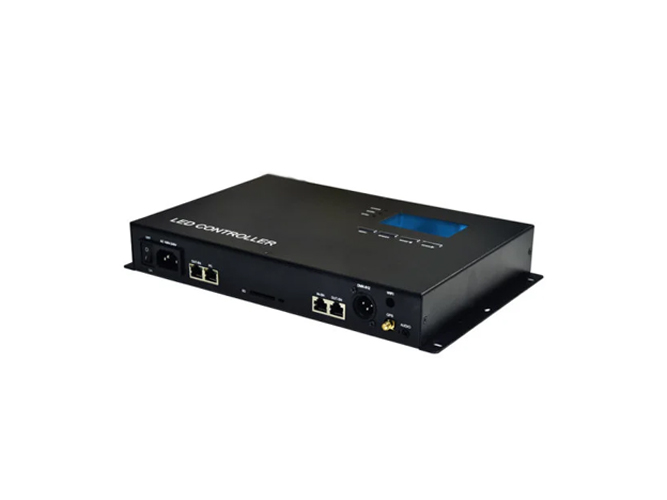

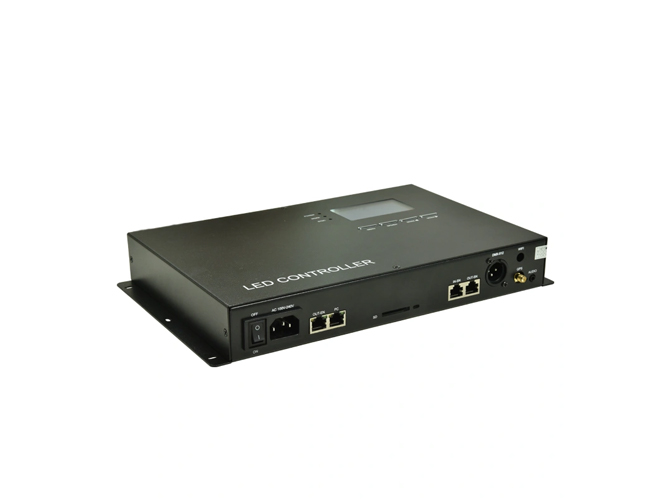

Offline master control SN500

Performance Characteristics

Product specifications: 330L×200W×46H (mm) Input voltage: AC 100V～240V Network port standard: Standard RJ45 network interface Drive points: 60,000 pixels EN box can be installed: Up to 154 units (recommended to control no more than 80 units) Working power: <5W Working temperature: -15～60℃ Function overview:

1. Online and offline integrated system, used in conjunction with EN series control boxes, when disconnected from the PC, it automatically switches to the host (offline system), which is flexible and convenient;

2. When SN-500 is used as the host (offline system), you only need to replace the effect file on its SD card (the name of the effect file is not supported to be modified) to replace the effect of the EN control box under the same link;

3. When SN-500 is used as an offline master control, the maximum number of output control points of a single unit supports 50,000 points (including virtual points), and up to 154 EN-508W can be controlled within the total number of points;

4. SN-500 controller does not support the output of multiple lamps in the same software. If necessary, please contact our technicians or engineers first;

5. Optional additional functions such as time control, master-slave cascade synchronization, GPS synchronization, WIFI remote control, sound control, DMX console control, etc.;

6. Professional effect production software is provided, and users can make any effect by themselves.
