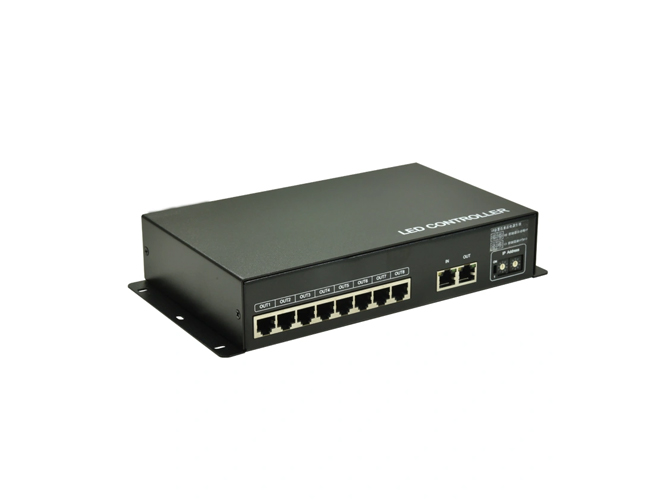

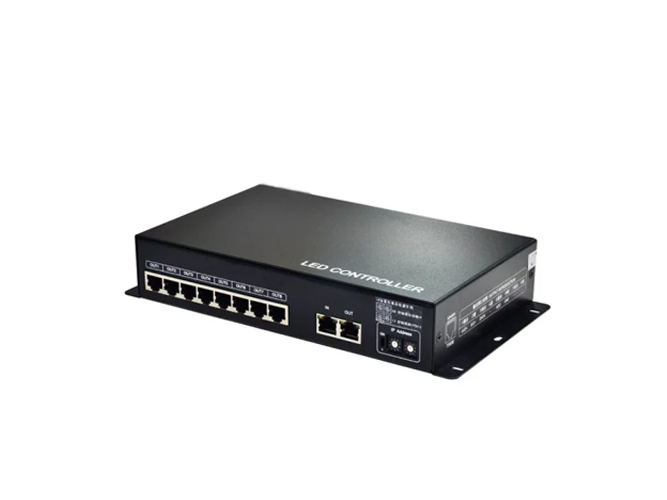

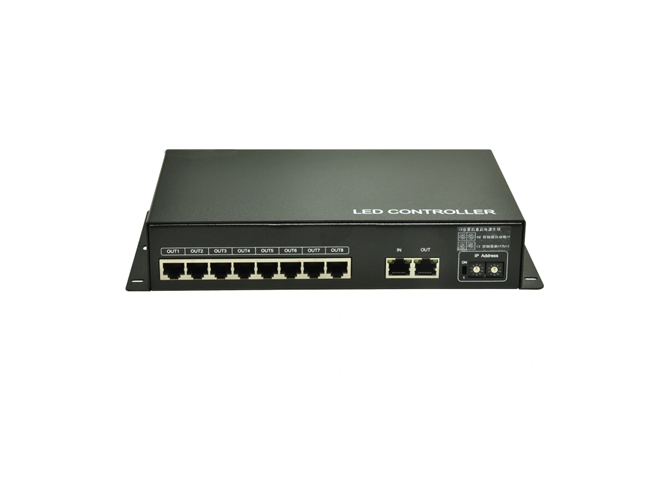

Sub-control EN-408

Performance Characteristics

Product specifications: 220L×142W×43.6H (mm) Input voltage: AC100～240V Input signal: SW Ethernet protocol Output port: TTL level signal & RS-485 ×8 channels Drive points: Serial lamps: 1024 points × 8 channels; Standard DMX512 lamps: 168 points × 8 channels; Extended DMX lamps: 336 points × 8 channels; Output power: 5W Working temperature: -15℃～60℃ Function overview:

1. Computer online, multiple controllers can be cascaded, and the maximum number of controllers can be 100,000 points (within the total number of points, the maximum number of controllers is 99).

2. The controller can flexibly choose to automatically perform ID addressing, or manually set the ID, which is convenient and reliable.

3. 8-channel signal output (data independent), suitable for large, medium and small projects or long-distance transmission.

4. Control all kinds of conventional chip LED guardrail tube screen, point light source screen, high-power wall washer, etc. SW single-chip: D**S, D**J; Single line: TM180*-400K/800K, UCS19**, UCS29**, TLS3001(1Mhz), SM167**; DMX512: SW-D, SW-U, UCS512A/B/C0/C4, DMX512AP/SM512, SM16512, market standard DMX512; Breakpoint resume: UCS5603, WS2818, GS8206, P9883, TM1914, XT1506S.

5. According to the on-site layout of DMX lamps, the addressing of lamps can be realized. 6. Professional effect production software is provided, and users can make any effect by themselves.
