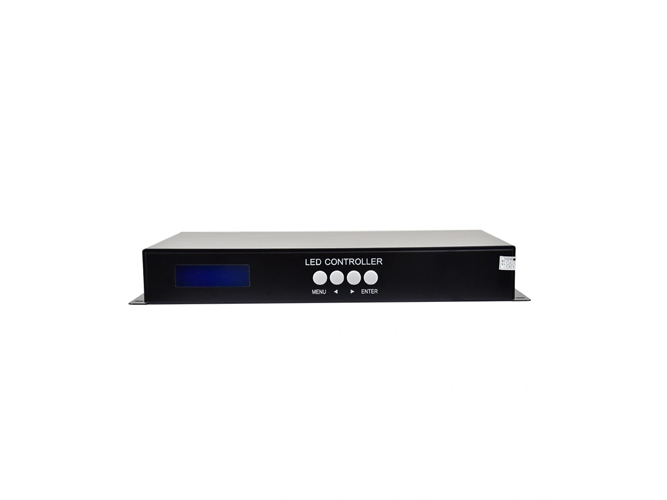

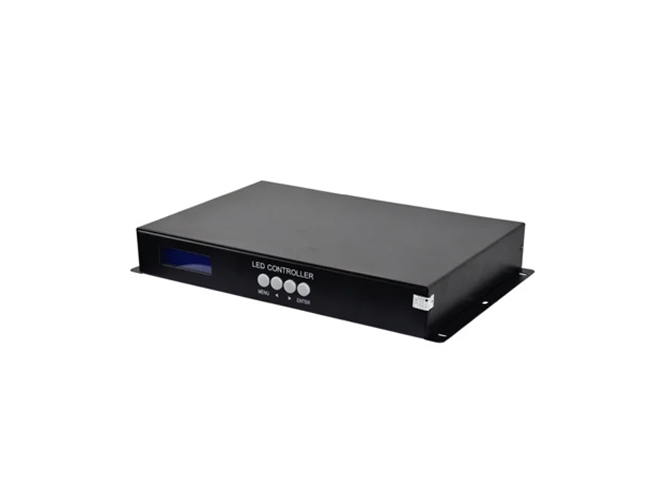

Sub-control EN-508

Performance Characteristics

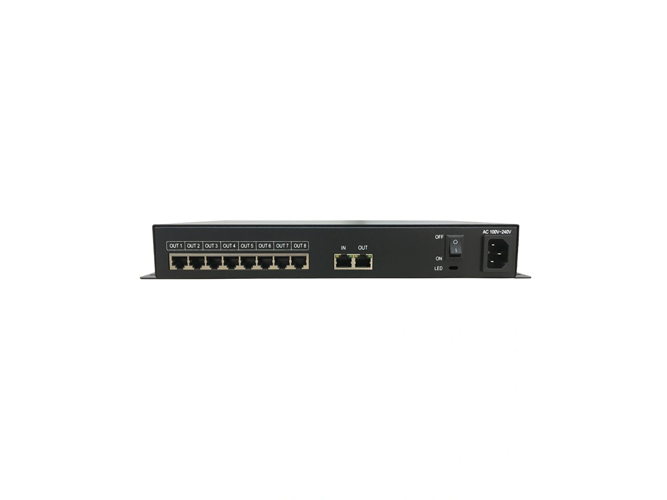

Product specifications: 329L×199W×43.6H (mm) Input voltage: AC100～240V Input signal: SW Ethernet protocol Output port: TTL level signal & RS-485 ×8 channels Number of driving points: Serial lamps: 1024 points × 8 channels; Standard DMX512 lamps: 168 points × 8 channels; Extended DMX lamps: 336 points × 8 channels; Output power: 5W Working temperature: -15℃～60℃

1. For display screens with complex shapes, it has a unique data processing method and can easily formulate solutions.

2. With computer online and SN500 series offline, multiple controllers can be cascaded, supporting a maximum of 400,000 points (including invalid points), and the number of controllers can be as many as 154.

3. 8-channel signal output (data independent), suitable for large, medium and small projects or long-distance transmission.

4. Intelligently set the corresponding ID address through the buttons of the controller, which is stable and reliable.

5. Multiple controllers can play the same content at the same time.

6. Control various conventional chips of LED guardrail tube screen, point light source screen, high-power wall washer, etc. SW single-chip: D**S, DJJ; Single line: TM180*-400K/800K, UCS19**, UCS29**, TLS3001(1Mhz), SM167**; DMX512: SW-D, SW-U, UCS512A/B/C0/C4, DMX512AP/SM512, SM16512, market standard DMX512; Breakpoint resume: UCS5603, WS2818, GS8206, P9883, TM1914, XT1506S.

7. Comes with professional effect production software, users can make any effect by themselves.

8. Encryption function can be realized by using with customized hardware.
