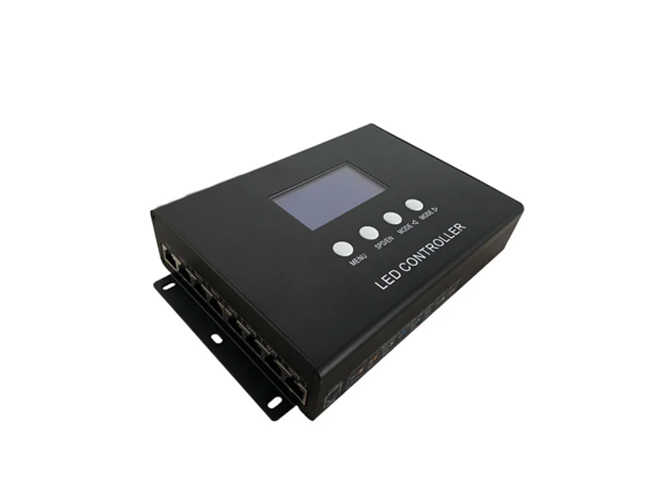

Offline controller KJT408

Performance Characteristics

Product specifications: 220L×142W×45H (mm) Input voltage: AC 100V～240V Output port: TTL level signal & RS-485 ×8 channels Driving points: Single-line lamps: 1024 points × 8 channels; Standard DMX512 lamps: 168 points × 8 channels; Extended DMX lamps: 336 points × 8 channels; Output power: <3W Working temperature: -15℃～60℃ Function overview:

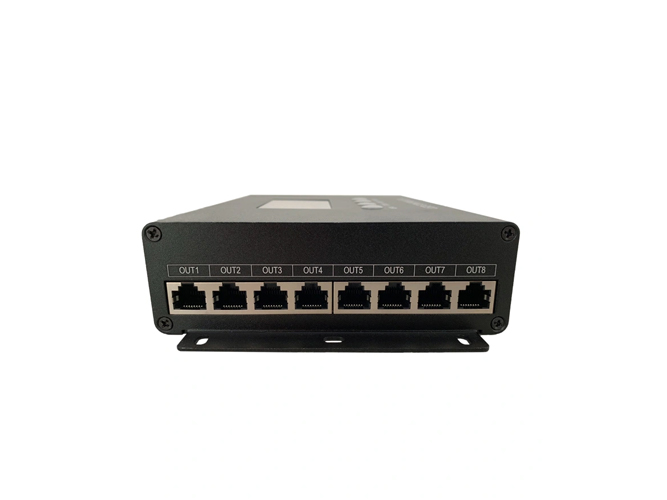

1. 8-channel signal output (data independent), suitable for large-scale projects or long-distance transmission, and can be cascaded and used in combination.

2. Control LED guardrail tube screen or point light source screen of various conventional chips; SW single-chip: D**S, DJJ; Single line: TM180*-400K/800K, UCS19**, UCS29**, WS2811/12, TLS3001(1Mhz), SM167**; DMX512: SW-D, SW-U, UCS512A/B/C0/C4, DMX512AP/SM512, SM16512, market standard DMX512; Breakpoint resume: UCS5603, WS2818, GS8206, P9883, TM1914, XT1506S.

3. Switchable effect mode and playback speed, adjustable volume sensitivity (optional) and lamp brightness (optional).

4. Additional functions such as audio control, voice control, cascade, DMX512 decoding, time control, GPS synchronization, remote control, encryption, WIFI control, GSM control, etc. are available. Please consult our company for details.

5. Professional effect production software is provided, and users can make any effect by themselves and put it into the SD card for use.
