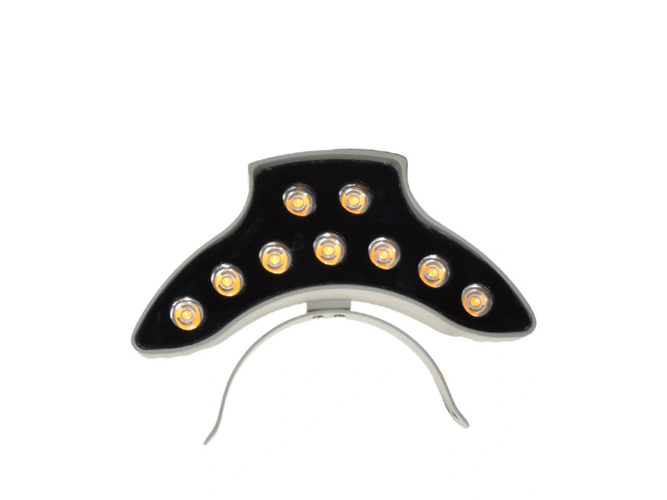

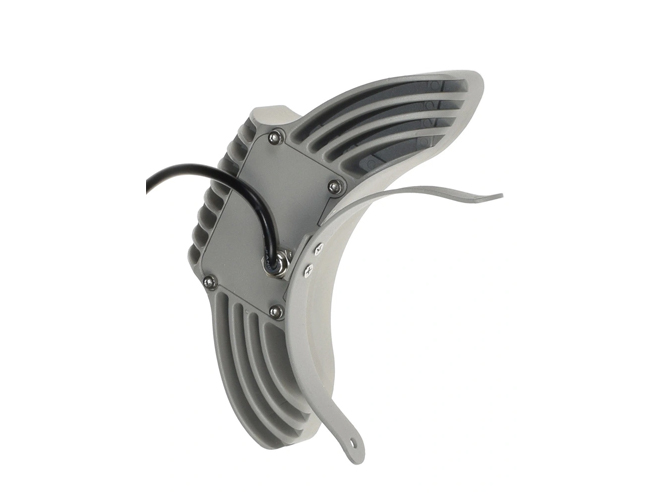

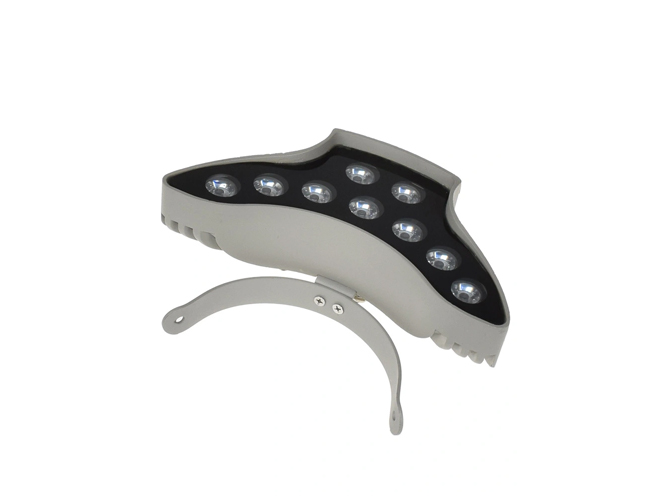

LED corrugated lamp

Power (w)

9W

Number of LEDs

9

LED color temperature (k)

1800K-6500K RGB

Initial luminous flux (m)

810LM

Luminous efficiency (lm/w)

90-100LM

LED Chips

Cree OSRAM wafer optional

LED Driver

Mean Well-Moso-Dongli available

Input voltage(V)

DC24V-AC220V

Power Factor

0.95

Color rendering index (Ra)

80

Protection level

IP67

Lens Angle

5°10-15°30°60°

Lamp body material

The lamp body is made of 6063 aluminum alloy, the surface is anodized, and the lampshade is made of tempered glass

Lamp Color

Silver grey and iron grey can be customized

Installation

Screw bracket fixing

Lamp size (mm)

204*1140*50mm

Applicable places

Ancient building tiles brightening.

Net weight of lamp(kg)

Gross weight of lamp(kg)
