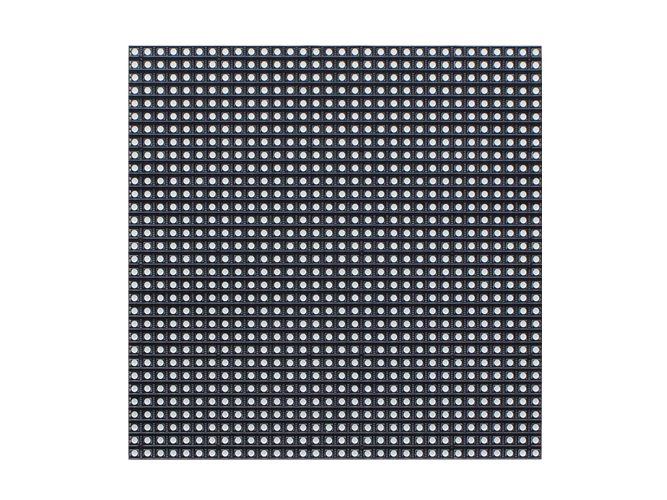

Product features:
1. High-quality LED chips with strong anti-static properties;
2. Large viewing angle, soft display image, and perfect reproduction of video images at any angle;
3. Lamp and drive integrated, multi-layer circuit structure design, uniform current distribution, low power consumption and fast heat dissipation;
4. Ultra-high brightness, low attenuation, high reliability and high weather resistance;
5. High contrast, using a black lamp body, the contrast can be increased by more than 50%;
6. High refresh rate, high grayscale, shadow elimination, energy saving and low power consumption, low EML, anti-leakage, multi-channel redundant backup of the control system, and point-by-point color correction of the module;
Scope of application:
widely used in traffic information release at stations, docks, airports, conferences, shopping centers, brand and advertising logo displays; TV, large-scale cultural performances, live broadcast of concerts and other occasions.
Pixel pitch | 5.33 |
Pixel density (m²) | 35200 |
Pixel composition | 1R1G1B |
Box size | 480mm×480mm×71.5mm |
Cabinet resolution | 90×90 = 8100 points |
Number of modules (one box) | 2×2= 4 blocks |
Box material | aluminum |
Number of power supplies (one box) | 5V/80A/1 piece |
Net weight of box | 40kg/m² |
Box weight | 45kg/m² |
Packing size (air box) | 560mm×660mm×243mm |
red light | SMD3528; 625nm，350 mcd |
Green Light | SMD3528; 525nm，700 mcd |
Blue Light | SMD3528; 465nm，150 mcd |
Module resolution | 45×45 dots |
Module size | 240×240×15（mm×mm×mm） |
Module Net Weight | 1kg |
Power consumption (single module) | 5V，67.5W |
White balance brightness | 2000cd / m² |
Grayscale | 4096 |
color | 16.7 million |
Best viewing angle | Horizontal: 140°, Vertical: 140° |
Optimal viewing distance | 5〜200m |
Scan Mode | 1/9; real pixel |
Refresh rate (maximum) | 4000Hz |
Input voltage | 110V/60Hz，220V/50Hz; |
Power consumption (maximum) | 1100W/ m² |
Power consumption (average) | 550W/ m² |
life | 50000h |
Operating temperature | -20℃〜+50 ℃ |
Operating humidity range | 10% ~ 90%RH |
Front protection level | IP31 |
Back protection level | IP31 |
