P7.62LED indoor full color display

P7.62LED indoor full color display

  • Category:Indoor LED Display
  • Views:200
  • Time:2024-08-15
  • Desc:
  • Detail

Features of P7.62 indoor full-color LED display:
1) Advanced and reasonable system design, stable display effect, easy installation and maintenance.
2) All-weather work: realistic colors, high refresh rate, anti-static, dust-proof, good heat dissipation effect, high cost performance.
3) Display mode: left and right movement, up and down movement, left pull curtain, right pull curtain, middle opening and closing, flashing, instant display and other modes.
4) Using the program editing and playback software, you can edit, add, delete and modify text, graphics, images and other information through the mouse. The arranged content is stored in the control card, and the information playback is automatically displayed in a loop according to the program table.
5) Strong luminous brightness: within the visible distance, when the sun shines directly on the screen surface, the displayed content is still clearly visible.
6) Good viewing angle: There is a large viewing angle both horizontally and vertically, which is suitable for environments with wide horizontal distribution and large height differences.
7) Good effect: Adopting nonlinear point-by-point correction technology, the text is clearer and the layering is stronger;
8) Strong reliability: Adopting distributed scanning technology and modular design technology, the reliability and stability are higher;
9) Diversified display modes: Support multiple display modes;
10) Convenient operation: The computer edited content is sent to the system control card, and the edited content can be displayed, and the system operation is very convenient.
11) Scope of application: shopping malls, enterprises, schools, stages, banks, securities, public security, transportation, industry and commerce, electricity, customs, hospitals, parks, airports, stations, stadiums and other fields.


Pixel pitch

7.625

Pixel density (m²)

17200

Pixel composition

1R1G1B

Box size

976mm×976mm×108mm

Cabinet resolution

128×128 = 16384 points

Number of modules (one box)

4×8= 32 blocks

Box material

aluminum

Number of power supplies (one box)

5V/40A/5pcs

Net weight of box

42Kg/m²

Box weight

47Kg/m²

Packing size

1056mm×1156mm×316mm

red light

SMD3528; 625nm,350 mcd

Green Light

SMD3528; 525nm,700 mcd

Blue Light

SMD3528; 465nm,150 mcd

Module resolution

32 dots × 16 dots

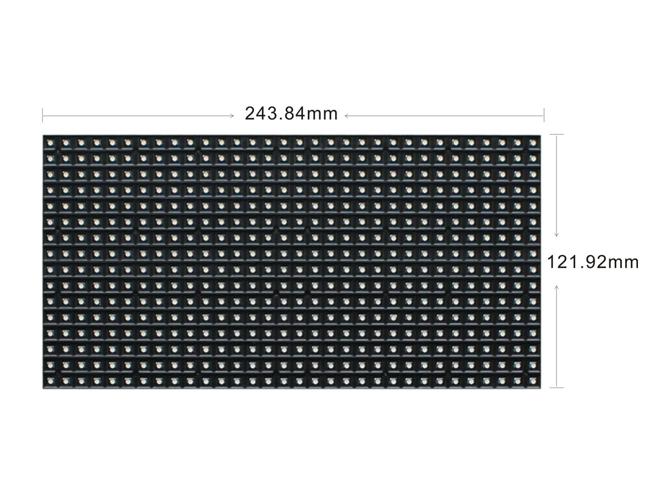

Module size

244mm×122mm×15mm

Module Net Weight

0.23Kg/piece

Power consumption (single module)

5V,21.5W

White balance brightness

2000cd / m²

Grayscale

4096

color

16.7 million

Best viewing angle

Horizontal: 120°, Vertical: 120°

Optimal viewing distance

7.5—180m

Scan Mode

1/8; real pixel

Refresh rate (maximum)

4000Hz

Input voltage

110V/60Hz,220V/50Hz;

Power consumption (maximum)

716W/ m²

Power consumption (average)

430W/ m²

life

50000h

Operating temperature

-20℃ —+50℃

Operating humidity range

10% — 90%RH

Front protection level

IP40

Back protection level

IP40
