Performance Characteristics
1: Integrated precision die-cast aluminum heat sink, adopting convection design, perfectly solves the heat dissipation problem and guarantees service life
2: Adopts tempered glass mask, which is sturdy, durable, safe, waterproof, dustproof and uniform light transmission
3: LED light source adopts imported chips, lamp beads have high luminous flux, and display index Ra>80
4: High-performance power drive, intelligent control circuit, over-current and over-voltage protection
Product Parameters

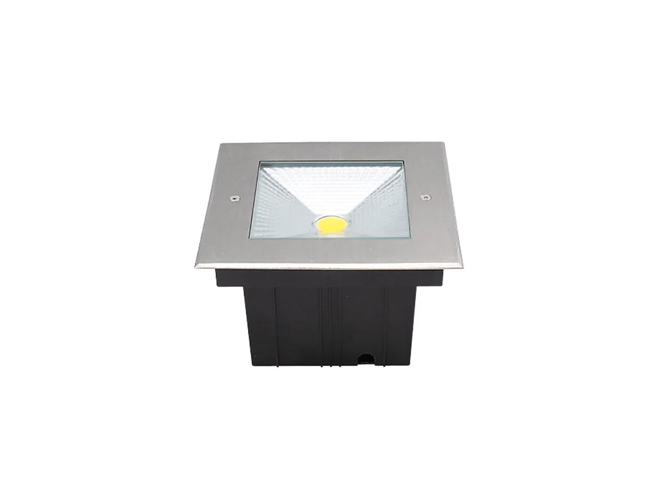

model | JT-DMD-10G |
Power (w) | 10W |
Number of LEDs | 1 CDB |
LED color temperature (k) | 1800K-6500K RGB |
Initial luminous flux (m) | 1100 |
Luminous efficiency (lm/w) | 90-110lm |
LED Chips | Cree-Osram-Puri-Wafer optional |
LED Driver | Mean Well-Moso-Dongli available |
Input voltage(v) | DC24V AC220V |
Power Factor | 0.95 |
Color rendering index (Ra) | 80 |
Protection level | IP67 |
Lens Angle | 5°10°15°30°60° |
Lamp body material | The lamp body is made of 6063 aluminum alloy, the surface is anodized, and the lampshade is made of tempered glass |
Lamp Color | black |
Installation | Ground fixed installation |
Lamp size (mm) | 130*210mm |
Applicable places | Suitable for square lighting |
Net weight of lamp(kg) | |
Gross weight of lamp(kg) |
