Product Parameters

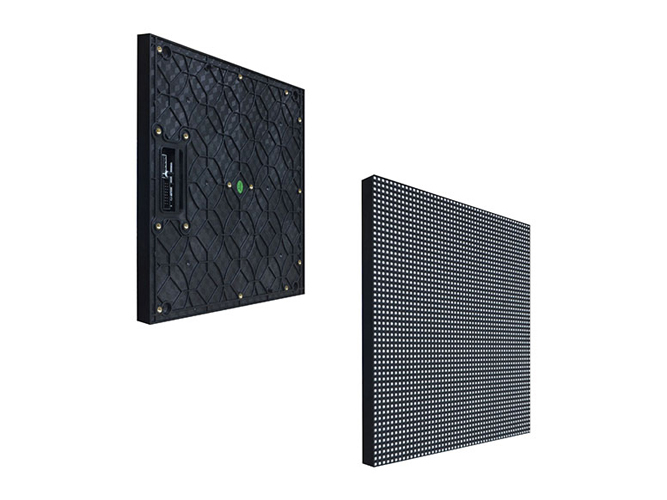

Specifications | Outdoor P3 .91 full color LED display |
Pixel pitch | 3 .91 mm |
Pixel composition | 1R1G1B |
LED Type | SMD1921 |
Pixel density | 65536 points/ ㎡ |
Scanning method | 1月16日 |
Screen brightness | 4500cd/㎡-5800cd/㎡ |
Operating voltage | Domestic AC220V±10%, some countries AC110V±10%; 50Hz-60 Hz |
Average Power | 600W/㎡ |
Maximum Power | 1200W/㎡ |
Unit board points | 64 dots × 64 dots |
Unit board size | 250mm×250mm |
Flatness | The gap between modules is less than 1mm |
Viewing distance | 4m -30m (the larger the display area, the greater the maximum viewing distance) |
Viewing Angle | Horizontal 160 °, vertical 140° |
Drive mode | Constant current |
Display Color | 17M~69G color |
Brightness adjustment | Manual/Automatic/Programmable |
Grayscale | Level 256~4096 |
Refresh rate | 300Hz~2440Hz |
Frame rate | 60Hz |
Play content | TV pictures, commercials, videos, live broadcasts, pictures, text |
Display Mode | 640×480、800×600、1024×768、1280×960…1920×1200、2048×640 |
Control method | The LED display screen corresponds to the computer monitor point-to-point, which can be synchronous, asynchronous, remote, and wireless |
Transmission distance | Category 5e network cable ≦130M multimode optical fiber ≦500M single-mode optical fiber ≦10KM |
Continuous use time | ≥72 hours |
LED life | 100,000 hours |
Mean time between failures | ≥10,000 hours |
Discrete out-of-control points | <1 in 10,000 |
Continuous out-of-control points | none |
Protection Technology | Dustproof, anti-corrosion, anti-static; with over-current, short-circuit, over-voltage, under-voltage protection functions |
Operating ambient temperature | -20℃~+50℃ |
Convenient ambient humidity | 10%~90% |
Certification Standards | CE,ROHS |
