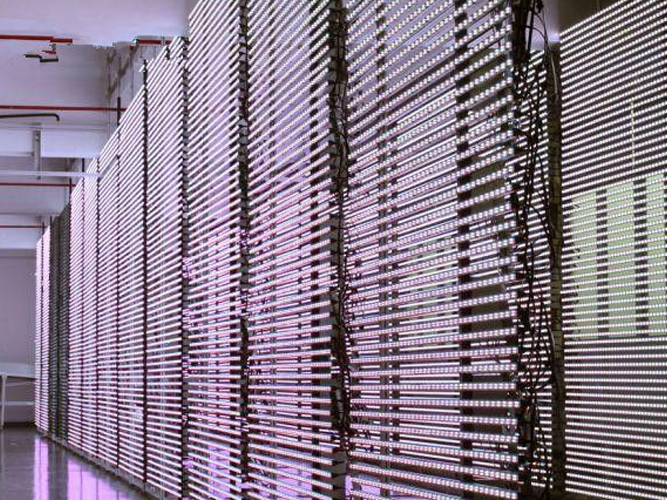

Product Features
1. The light bar module can be removed from the front without removing the entire cabinet, which is convenient for inspection andmaintenance;
2. The pin can be fully retracted, so that the cabinet can be disassembled from the middle of the screen body, which is convenient and quick to repair;
3. Fanless design, good heat dissipation, and silent;
4. The patented double waterproof rubber pad sealing design has a protection level of IP65 and can adapt to all-weather outdoor environments;
5. The cabinet air permeability reaches 30%-70%, with low wind resistance and high safety;
6. Up to 20 cabinets can be hung, which is easy to assemble super-large screens.
Pixel pitch | 25 |
Pixel density (M2) | 1600 |
Pixel composition | 1R1G1B |
Box size | 1200mm×1200mm×80mm |
Cabinet resolution | 48×48=2304 points |
Number of modules (one box) | 1×48= 48 blocks |
Box material | aluminum |
Number of power supplies (one box) | 5V/60A/3 pieces |
Net weight of box | 18kg/m² |
Box weight | 24kg/m² |
Packing size | 1280mm×1380mm×260mm |
red light | DIP346; 625nm，1000 mcd |
Green Light | DIP346; 525nm，2000 mcd |
Blue Light | DIP346; 465nm，550 mcd |
Module resolution | 1 point × 48 points |
Module size | 1195mm×15mm×12mm |
Module Net Weight | 0.33Kg/piece |
Power consumption (single module) | 5V，14W |
White balance brightness | 5800cd / m² |
Grayscale | 16384 |
color | 16.7 million |
Best viewing angle | Horizontal: 120°, Vertical: 60° |
Optimal viewing distance | 25—200m |
Scan Mode | Static; real pixel |
Refresh rate (maximum) | 2400Hz |
Input voltage | 110V/60Hz，220V/50Hz; |
Power consumption (maximum) | 445W/ m² |
Power consumption (average) | 260W/ m² |
life | 50000h |
Operating temperature | -20℃—50 ℃ |
Operating humidity range | 10% ~ 90%RH |
Front waterproof level | IP65 |
Back waterproof level | IP65 |
