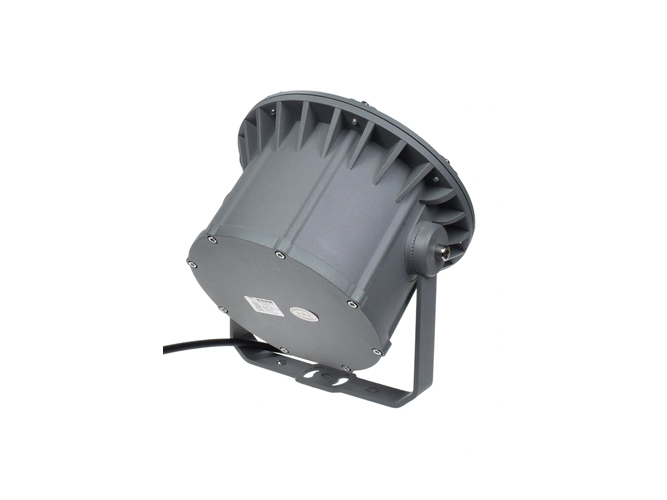

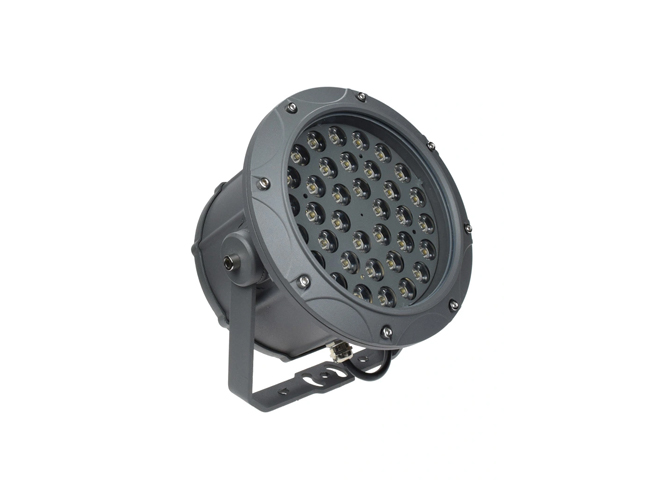

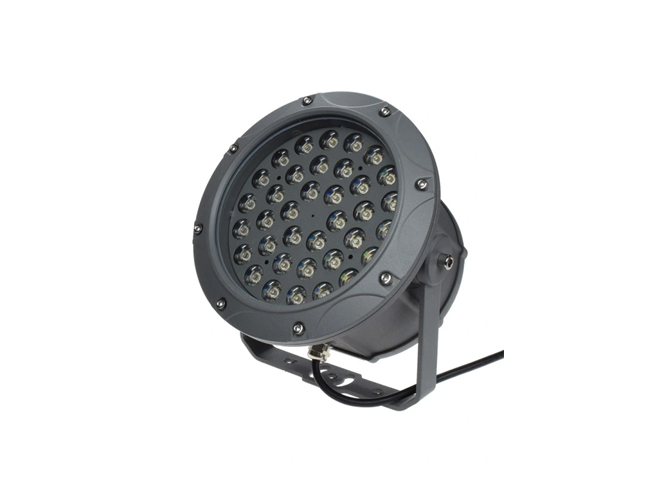

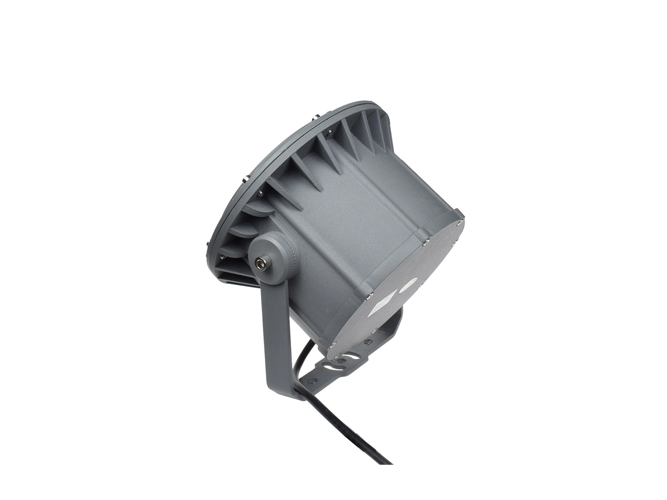

Performance Characteristics
1: The lamp shell is made of high-quality aluminum die-casting. The surface is anodized, the lamp body is beautiful and exquisite, and the heat dissipation performance is excellent.
2: The lamp body is sealed with tempered glass and silicone rubber, and the internal epoxy resin is potted to ensure the superior waterproof performance of the lamp. 3: The light source of the lamp adopts imported ultra-bright high-power LED lamp beads, and the built-in constant current drive power supply ensures the stability of the lamp performance.
4: The lamp adopts PMMA optical grade lens, and can choose 5°10°15°25°30°45°60°90° and other angles to achieve the required lighting effect. 5 External control synchronous RGB change international standard DMX512 protocol control system
Product Parameters
model | JT-TGD-24G1 |
Power (W) | 18W24W36W |
Number of LEDs | 18 24 36 |
LED color temperature (k) | 1800K-6500KRGB RGBW |
Initial luminous flux (m) | 1800-3600LM |
Luminous efficiency (lm/w) | 90-100LM |
LED Chips | Cree-Osram-Puri-Epson |
LED Driver | Mean Well-Moso-Dongli |
Input voltage(V) | DC24-AC220V |
Power Factor | 0.95 |
Color rendering index (Ra) | 80 |
Protection level | IP67 |
Lens Angle | 5°10°15°25°30°45°60° |
Lamp body material | The lamp body is made of 6063 aluminum alloy, the surface is anodized, and the lampshade is made of tempered glass |
Lamp Color | lron Gray |
Installation | Screw bracket fixing |
Lamp size (mm) | 206*145*145mm |
Applicable places | Suitable for outdoor building lighting, architectural decorative lighting |
Net weight of lamp(kg) | |
Gross weight of lamp(kg) |
