Performance Characteristics
1: The lamp has a solid structure and strict manufacturing process, high safety, long service life, long light projection distance, low carbon and energy saving
2: 304 stainless steel with radiator, high light transmittance tempered glass, anti-aging silicone sealing ring

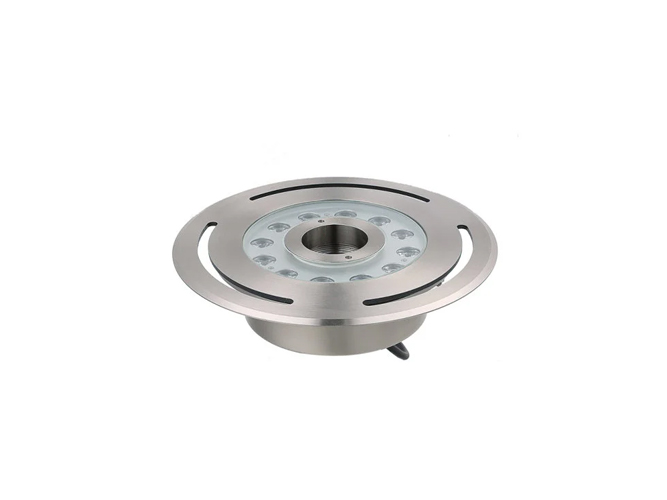

Product Parameters
model | JT-PQD-15G |
Power (w) | 12W15W |
Number of LEDs | 12pcs/15pcs |
LED color temperature (k) | 1800K-6500K RGB |
Initial luminous flux (m) | 1320-1650LM |
Luminous efficiency (lm/w) | 90-100LM |
LED Chips | Cree-Osram-Puri-Wafer optional |
LED Driver | Mean Well-Moso-Dongli available |
Input voltage(v) | DC24V |
Power Factor | 0.95 |
Color rendering index (Ra) | 80 |
Protection level | IP68 |
Lens Angle | 5°10°15°30°60° |
Lamp body material | 304 stainless steel with radiator, high light transmittance tempered glass |
Lamp Color | silver |
Installation | Screw bracket fixing |
Lamp size (mm) | 76*170mm |
Applicable places | Suitable for fountains, pools |
Net weight of lamp(kg) | |
Gross weight of lamp(kg) |
