Outdoor P6.25 dynamic floor tile screen, interactive display

Product Features

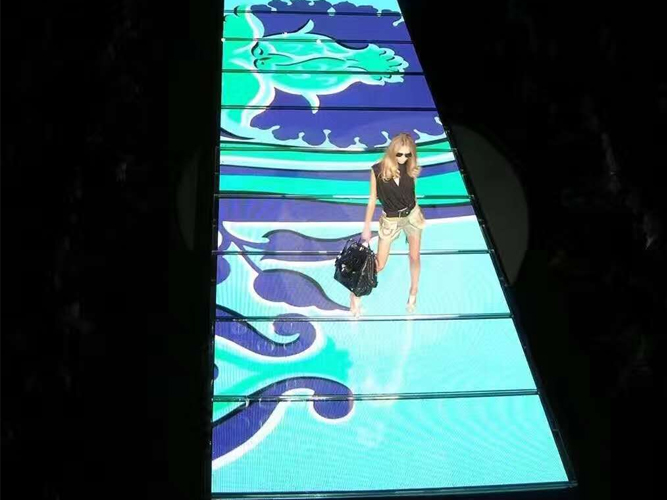

LED floor tile screen is a novel digital display device specially designed for indoor exhibition halls, stages, evening parties and other use environments. Flexible modular design can be used in various applications such as floors, ceilings, and catwalks.

1. Principle of LED interactive induction floor tile screen:

Schematic diagram of the interactive LED floor tile screen: The specially processed video source is first played by the special playback software in the LED display control computer, and the DVI/HDMI and other signal outputs are connected to the main controller for video signal processing through a signal line, and then connected to the signal distributor through an optical fiber or network cable to distribute and display the complete playback screen. When the LED floor tile screen interacts with the audience, the position sensor on the display screen senses and detects the interactive point of the interactive audience, and the positioning controller of the floor tile screen transmits the position coordinate information of this interactive point back to the LED display control computer. After the control computer receives the position coordinate information, the control software can transmit it back to the LED display control computer based on the received coordinate information. After the control computer receives the position coordinate information, the control software can call different program files and video files for playback based on the received coordinate information, and the picture displayed by the LED interactive floor tile screen will have corresponding real-time changes, achieving a real-time interactive effect.

VITEM interactive LED floor tile screen Imagic

Second, from the necessary conditions and principles for realizing the LED interactive induction floor tile screen, it can be known that it is mainly different from the traditional LED floor tile screen in three aspects: the first is the difference in control software. The traditional LED display screen only needs ordinary playback software at the playback end to play the video source, and does not need to receive other signals. The interactive LED floor tile screen is different. It must not only be able to play, but also be able to receive the interactive point position coordinate information sent back from the display end. After receiving the position coordinate information, the control software can call different program files and video files for playback according to the received coordinate information. This is the same as when we play games on the computer. The LED display screen is like a computer monitor, the interactive audience is like a mouse, and the interactive point is like the position of the mouse. Clicking the mouse at different positions will call different programs. The second is that the direction of data transmission is different. The data of the traditional LED display screen is mainly transmitted from the control end to the display end, which is basically one-way. The LED interactive induction floor tile screen increases data return, which belongs to two-way transmission.

The third is the difference in the display end of the LED screen. The traditional LED screen only plays a display role, while the interactive LED floor tile screen also needs to sense, collect, and transmit the interactive point position coordinate information of the interactive audience to locate the interactive point. This is the most important and critical part of the interactive LED screen.
